The AQUA-K9 combines Acoustic Detection and Tracer Gas Detection in one professional field system. The AQUA-K9 is suitable for indoor, outdoor, shallow, deep-buried, and tracer gas leak detection.

This kit includes a range of specialist sensors, each designed for a different environment. From indoor floors and confined areas to outdoor surfaces, buried pipelines, and more difficult jobs requiring tracer gas, the AQUA-K9 gives the operator the flexibility to adapt to the conditions on site.

Leak sounds and sensor feedback are processed by the Control Unit and displayed on the screen in real time through waveform analysis and numerical values. At the same time, sound is transmitted to the headphones, allowing the operator to both hear and analyse the signal while comparing test points. This helps reduce guesswork, improves pinpointing accuracy, and minimises unnecessary digging.

For more difficult jobs where acoustic conditions may not be ideal, the AQUA-K9 also includes tracer gas detection capability, allowing escaping gas concentrations to be detected and used to further narrow down the leak location.

AQUA-K9 Features

• Designed for indoor, outdoor, and tracer gas leak detection

• Multi-sensor configuration for a wide range of surfaces and environments

• Includes specialist sensors for shallow and deeper buried pipeline detection

• Time-domain waveform visualisation

• Real-time waveform visualisation and numerical feedback

• Adjustable gain, volume, and frequency filtering

• Up to 8 hours working time

• Rechargeable battery system

• 7-inch LCD

• Suitable for municipal, industrial, residential, and commercial applications

• Audio recording supported

• Lifetime Aqua Support

• Simple and easy-to-use interface

• Robust and heavy-duty casing


Product Principle

The AQUA-K9 works by detecting the vibration and sound created when pressurised water escapes from a pipe. Using a range of specialist acoustic sensors, the unit captures leak signals through floors, walls, outdoor surfaces, soil, and other environments where a leak may be present.

These signals are then processed by the Control Unit, where they are shown visually through live waveforms and numerical values while also being transmitted to the headphones. This gives the operator both an audible and visual way to compare signal strength and identify the most likely leak location.

As the sensor moves closer to the leak, the signal generally becomes clearer and stronger, helping the operator narrow down the burst location more efficiently.

For more challenging jobs, the AQUA-K9 also features a Gas Sensor, which can detect escaping gas at the surface and provide an additional method of locating the leak when acoustic conditions are less favourable.

This combination of multiple sensor options and real-time signal analysis makes the AQUA-K9 a highly capable solution for professionals who need flexibility, accuracy, and confidence before breaking ground.

What’s Included

• Medium Outdoor Floor Sensor
• Large Outdoor Floor Sensor
• Indoor Wall Sensor
• Indoor Floor Sensor
• Gas Sensor
• Listening Rod / Probe Set
• Control Unit
• Headphones
• Hand Controller
• Protective Transport Case

Ideal For

• Plumbing professionals

• Leak detection specialists

• Civil and municipal maintenance

• Fire service and infrastructure applications

• Industrial pipeline diagnostics

• Residential and commercial leak detection

Coming soon.

• Medium Outdoor Floor SensorFor acoustic detection on outdoor hard and soft ground, supporting buried-pipeline applications at depths up to 3 m, depending on field conditions.
• Large Outdoor Floor SensorDesigned for deeper outdoor acoustic detection on hard or soft ground, supporting buried-pipeline applications at depths up to 6 m, depending on field conditions.
• Indoor Wall SensorCompact high-contact acoustic sensor for walls, fittings, narrow gaps and confined indoor areas where precise contact is required.
• Indoor Floor SensorAcoustic contact sensor for general indoor and floor-surface leak detection where stable surface contact is required.
• Gas SensorTracer Gas Detection for locating escaping gas from pressurised pipelines, with detection capability up to 8 m depending on field conditions.
• Listening Rod / Probe SetExtends direct-contact acoustic testing to fittings, valves and ground applications using compatible probes and rods.

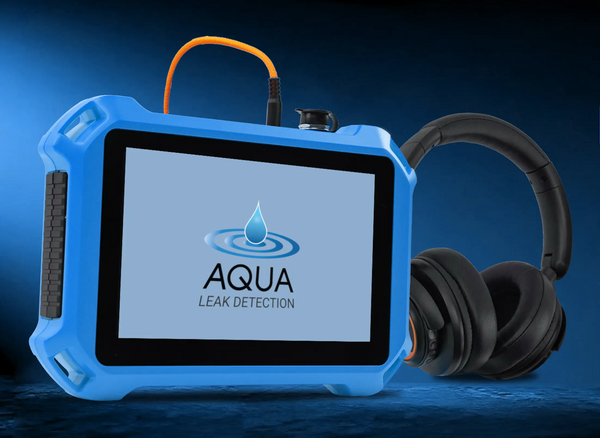

• Control UnitCentral AQUA-K9 interface with a 7-inch LCD for live waveform analysis, numerical signal feedback, detection modes and recorded field data.
• HeadphonesClosed-back monitoring headphones for listening to acoustic leak signals and comparing changes between test points.
• Hand ControllerProvides sound collection plus convenient gain and volume adjustment while operating connected acoustic sensors.
• Protective Transport CaseOrganised protective storage for the AQUA-K9 control unit, sensors, probes and accessories during transport and field work.
